Product Features

• Ultra-safe Lithium Iron Phosphate (LiFePO4) technology.
• Integrated battery management System (BMS).
• Light weight & compact.
• Water & dust resistant (IP56).
• Highly durable ABS enclosure.
• Drop in lead acid replacement in terms of physical size. Please ensure that your charge controller/ inverter are lithium compatible.

Technical Specifications

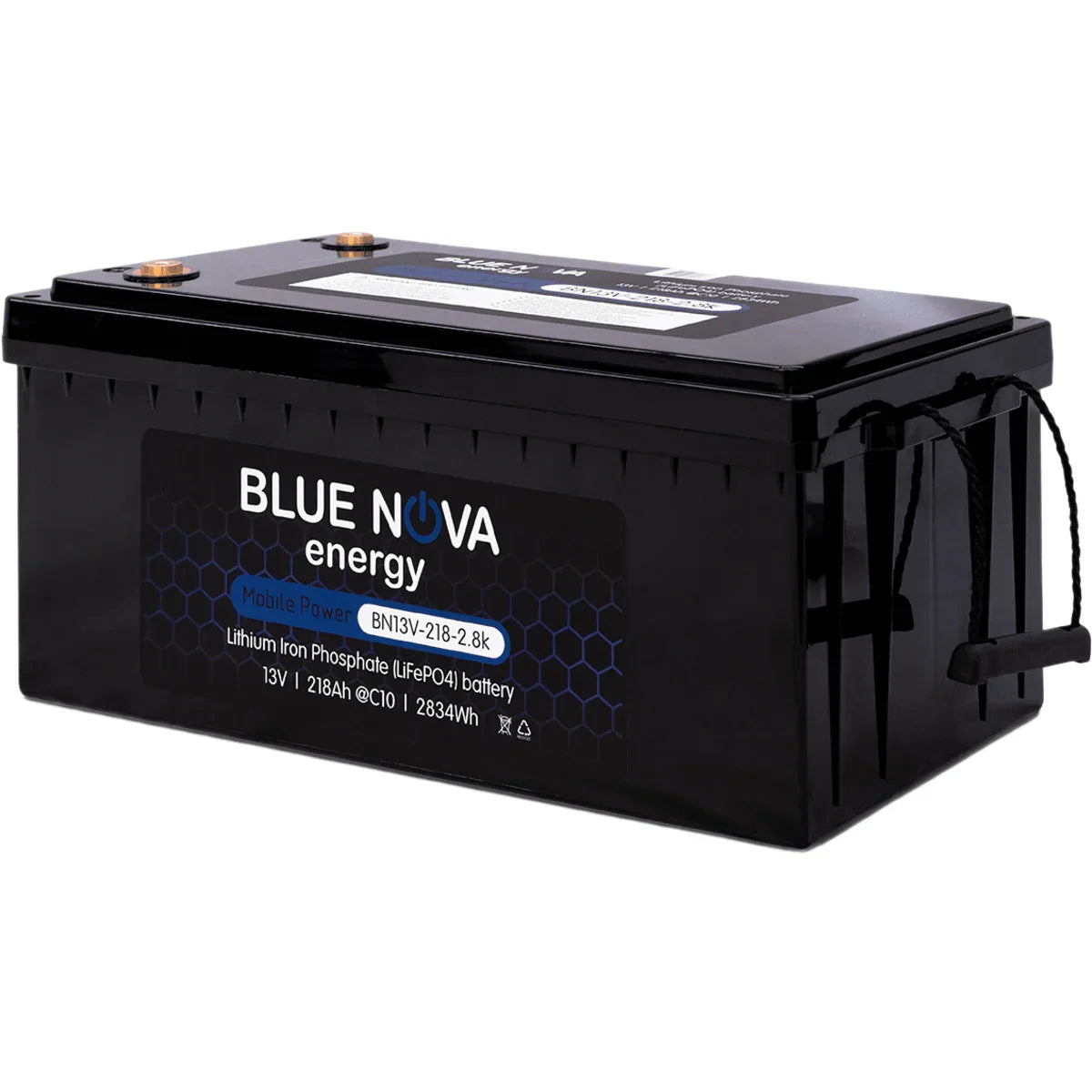

• Model: BN13-218-2.8k.
• Capacity (Ah): 218.
• Current (V): 13.
• Energy (Wh): 2834.
• Dimensions (mm): 522 x 240 x 245.
• Weight (kg): 27.
• Charge Current (A): 40.
• Max Charge Current (A): 100.
• Max Discharge Current (A): 108.
• Pulse/Peak Current (<3s): 216.
• Cycles @ 100% DoD: 2000.
• Cycles @ 80% DoD: 3000.
• Cycles @ 50% DoD: 5000.
• Cycles @ 30% DoD: 8000.
• Terminal Type: M8.
• Max. 4 in series, max. 2 in parallel
• Recommended to not expand if the difference between the oldest & newest battery is more than 12 months.
• Warranty Period: 3 Years
