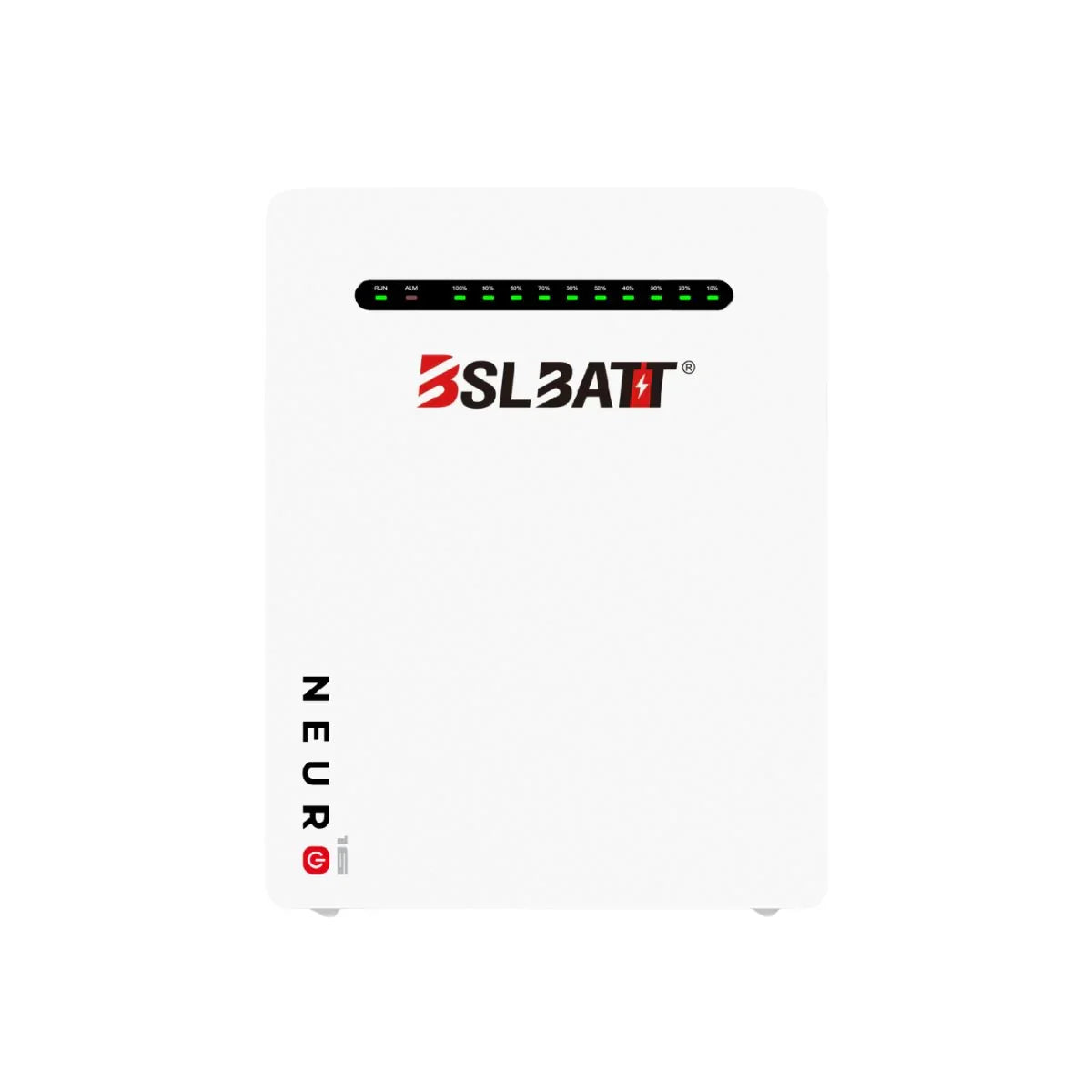

BSL Neuro 16 Pro+ IP65 314Ah 51.2V Wall Mount Lithium Battery

R 35,500.00
R 35,500.00
Sold out
Tax included. Shipping calculated at checkout.

Availability: 450 in stock
Vendor: Magine Hardware
View full product details

The BSLBATT Li-PRO 51.2V 314Ah Battery is a high-performance residential energy storage solution built with Tier One A+ LiFePO₄ cells for enhanced safety, reliability, and long service life. With a total energy capacity of 16.076 kWh, it is ideal for home energy storage, solar self-consumption, and backup power applications.

Featuring a modular and compact design, the system supports flexible expansion of up to 15 identical units in parallel. Advanced battery protection, wide inverter compatibility, and an IP65-rated enclosure ensure stable performance in demanding environments while delivering long-term value.

Key Features

  • 51.2V 314Ah (16.076 kWh) LiFePO₄ battery
  • Tier One A+ LiFePO₄ cell composition
  • Up to 15 units in parallel for scalable energy storage
  • 4000+ cycles at 90–95% Depth of Discharge
  • High power output with peak discharge up to 12.8 kW
  • IP65 protection level for outdoor and harsh environments
  • Compact, space-saving modular design
  • Compatible with leading inverter brands
  • Multiple communication options: RS232, RS485, CAN
  • 10-year warranty with long design life

Technical Specifications

General Parameters

Item Specification
Model Li-Pro StyX
Battery Type LiFePO₄
Nominal Voltage 51.2 V
Nominal Capacity 16,076 Wh
Usable Capacity 15,272 Wh
Cell Configuration 16S1P
Dimensions (W × H × D) 930 × 660 × 415 mm
Weight 137 kg
Discharge Voltage 47 V
Charge Voltage 55 V

Charge & Discharge Performance

Parameter Specification
Rated Charge Current / Power 80 A / 5.12 kW
Max Charge Current / Power 160 A / 8.192 kW
Peak Charge Current / Power 210 A / 10.752 kW
Rated Discharge Current / Power 200 A / 10.24 kW
Max Discharge Current / Power 220 A / 11.264 kW (1 s)
Peak Discharge Current / Power 250 A / 12.8 kW (1 s)

Environmental & System Parameters

Item Specification
Communication RS232, RS485, CAN, WiFi (optional), Bluetooth (optional)
Depth of Discharge 95%
Expansion Capability Up to 15 units in parallel
Operating Temperature (Charge) 0 – 55 °C
Operating Temperature (Discharge) -20 – 55 °C
Storage Temperature 0 – 35 °C
Short Circuit Protection 350 A, delay time 500 µs
Cooling Method Natural
Protection Level IP65
Monthly Self-Discharge ≤ 3% per month
Humidity ≤ 60% RH
Max Altitude < 4000 m
Warranty 10 Years
Design Life > 15 Years (25°C / 77°F)
Cycle Life > 4000 cycles @ 25°C
