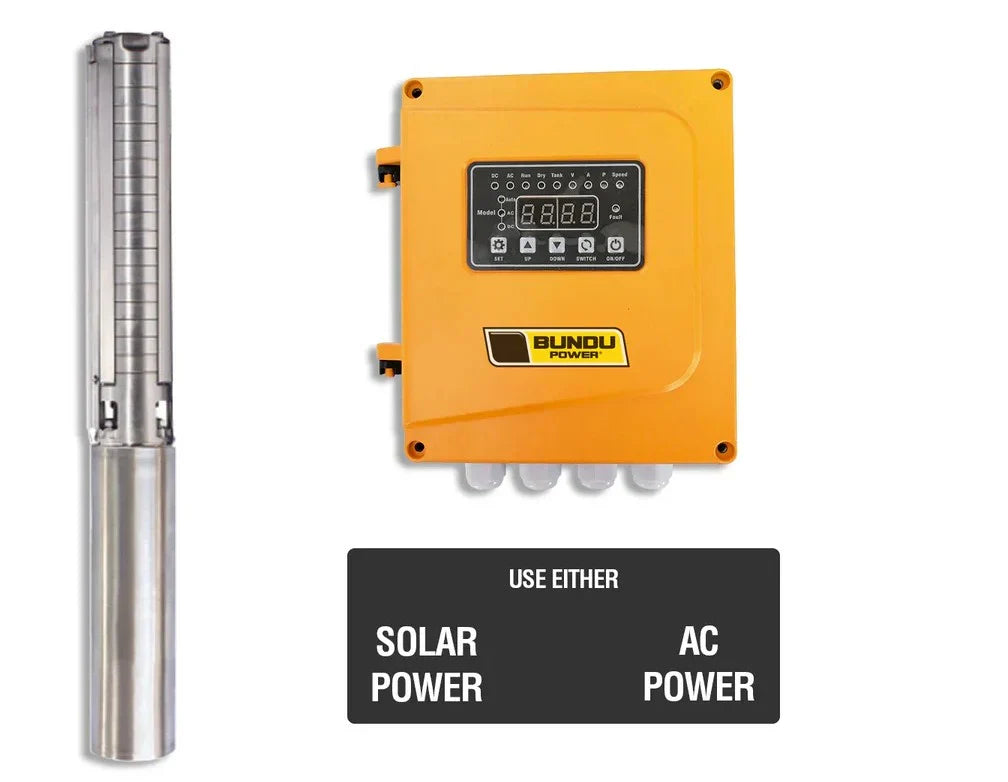

Bundu Power 255m 450v Hybrid Borehole Pump

R 11,000.00
R 11,000.00
Sold out
Tax included. Shipping calculated at checkout.

Availability: 450 in stock
Vendor: Magine Hardware
View full product details

Features

  • Use Solar or AC Power
  • NO Batteries required
  • Auto Switch from AC to DC & back
  • Digital Display

Technical Specifications

Model AD-4SPW2-17P
DC Voltage Range 60 - 450 V
AC Voltage Range 150 - 240 V
Pump Wattage 3000 Watts
Min. Power Requirement 4500 Watts
Max Flow Rate (m³/h) 5.5 m³/h
Max Flow Rate (L p/h) 5500 L/h
Max Head 255 m
Warranty 12 Months

General Data

Outlet 2.0 Inch
Pump Diameter 102mm (4")
Type of Controller Hybrid (AC & DC Input)
Submersible Depth (Pump) 150 m
Controller Input Voltage (DC) 60 - 450
Controller Input Voltage (AC) 150 - 240
Controller Type External
Controller Auto Restart on AC or DC on loss
Pump Body Stainless Steel (304)
Pump Motor Water Filled
Pump Impeller Plastic
Impeller Type Centrifugal
Certification CE, TUV SUD, UL, ISO9001, ISO14001
What's Included Hybrid Pump, Hybrid Controller, User Manual

Packed Dimensions

Pump Length 1030 mm
Pump Width 110 mm
Pump Height 110 mm
Pump Weight 13.4 kg
Controller Length 240 mm
Controller Width 230 mm
Controller Height 150 mm
Controller Weight 2.5 kg

Solar Panel Requirements

Solar Panels 8 x 550W (or Similar)

Key Points

  • Solar Panels oversized by 30%. i.e: A 500Watt pump should use 650Watts of Panels
  • Output based on 5.5 hours a day at max capacity. The pump will run longer, but slower in the mornings and evenings.
  • Submersible Depth = How far beneath the surface of the water. Not depth of the borehole.
