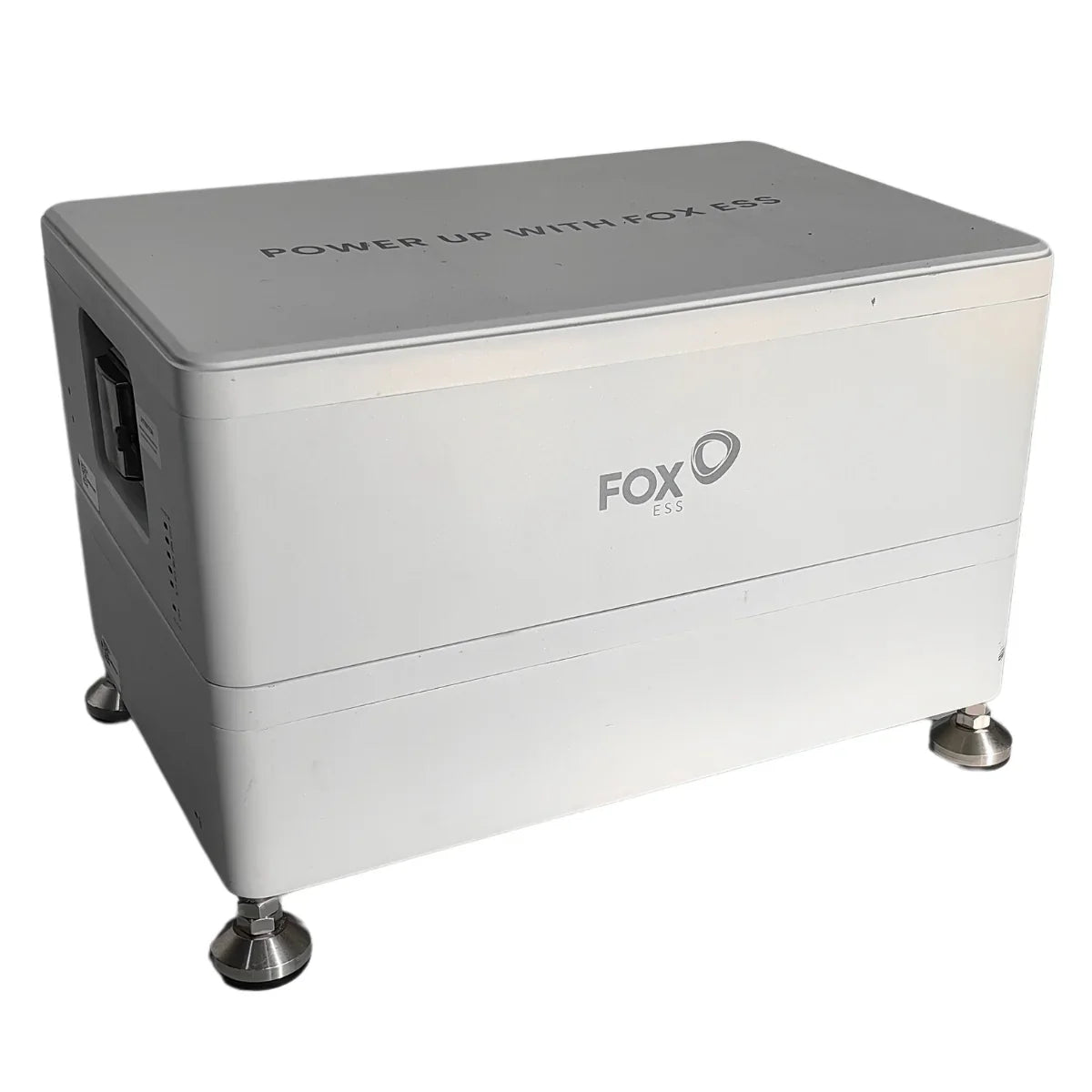

Fox ESS Energy Cube 4800 HV Lithium Ion Battery

R 35,999.00
R 35,999.00
Sold out
Tax included. Shipping calculated at checkout.

Availability: 450 in stock
Vendor: Magine Hardware
View full product details

The ECS is a high-performance, scalable battery storage system. The modular design allows for maximum flexibility, making it suitable for a broad range of storage applications. Additional batteries can be installed in series, allowing for a maximum storage capacity of 19.35 kWh. Installation is easy, with a plug and play
solution that can save valuable time for installers

  • 4.74kWh capacity
  • Scalable to 33.24 kWh
  • 90% Depth of Discharge
  • Large temperature tolerance
  • Easy installation
  • CAN communication
  • High voltage



Specification ECS4800-H2 ECS4800-H3 ECS4800-H4 ECS4800-H5 ECS4800-H6 ECS4800-H7
Battery Type LiFePO4 Prismatic Cell
Battery Module 1*CM4800 2*CS4800 3*CS4800 4*CS4800 5*CS4800 6*CS4800
Nominal Capacity [Wh] 9320/9490(3C) 13980/14240(3C) 18640/18990(3C) 23300/23740(3C) 27960/28490(3C) 32610/33140(3C)
Nominal Voltage [V] 89.6 134.4 179.2 224 268.8 313.6
Operating Voltage [V] 81.2 - 103.8 121.5 - 154.5 162.4 - 206 203 - 257.6 244.6 - 309.1 284.2 - 360.6
Recommend Discharge Current [A] 25
Max. Charge/Discharge Current [A] 50
Peak Discharge Current [A] 65 @30sec
Battery Pack Round-Trip Efficiency [%] >95
Depth of Discharge [%] 90
Cycle Life ≥6000
Communication CAN
Display CS: LED*1, CM: LED*6
Scalability Max. 7 Modules in Series
Operating Conditions
Installation Location Outdoor/Indoor (Stand)
Operating Temperature [°C] Charge: 0 - 55, Discharge: -10 - 55
Storage Temperature [°C] -10 - 35
Cooling Method Natural Convection
Humidity [%] 5 - 95 (No Condensing)
Altitude [m] Max. 2,000
Mechanical Characteristics
Dimensions (W*H*D) [mm] 570*380*386 570*380*524 570*380*662 570*380*800 570*380*938 570*380*1076
Weight [kg] 82±1 121±15 160±2 199±2.5 238±3 277±3.5
Certificates
Safety IEC 62619
EMC EN IEC 61000-6-1/2/3/4
Transportation UN38.3
Ingress Protection IP65
