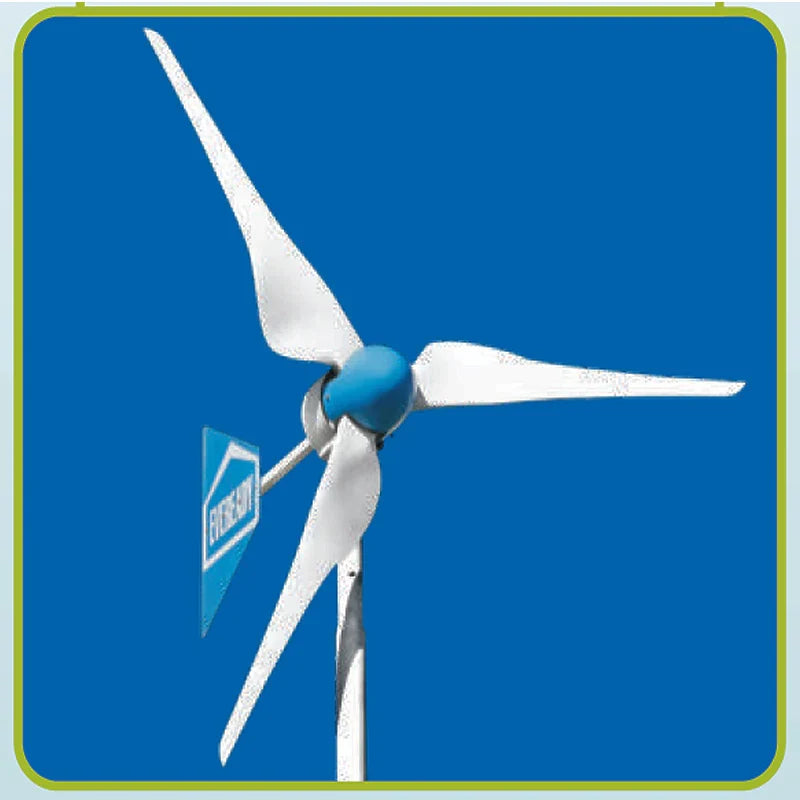

The Kestrel e300i is the next generation of small wind turbines. It is a low starting machine, allowing it to generate electricity at relatively low wind speeds. The high-performance three-blade rotor with pitch control powers a twin axial flux permanent magnet brushless alternator with good heat management.

This micro wind turbine reliably supplies electrical energy with minimum attention and maintenance. It comes standard with Kestrel’s patented pitch control technology, which is designed to be maintenance-free.

The e300i maintains its rated output in excess wind speeds, optimising the potential power output and energy yield. More usable power generated, stored, and used.

The Kestrel e300i wind turbine powers telecommunication sites around the world.

It is available in 24, 36, 48, 80, 110, and 200 VDC.

Ideal Applications

• All specific electrical needs
• Use for resistance heating
• Charging batteries

• Powering water pumps (small variable voltage DC pumps)
• Powering the national grid
• Boosting hybrid systems for increased energy efficiency

Technical specifications

• Small Wind Turbine Class: II.
• Maximum Power: 1000W.
• Rated Output: 1000W.
• Rated Windspeed: 10.5ms-1.
• Cut-in Windspeed: 2.5ms-1.
• Generator Type: Permanent-magnet / Axial flux brushless.
• Rotor Diameter: 3m
• Number of Blades: 3.
• Blade Material: Fibreglass.
• Overspeed Protection: Pitch Control.
• Controller Type: Charge or Voltage Limiter.
• Output Voltage: 200V.
• Application: Battery-charging / Grid Tie / Hybrid / Water Pumping


Tower Specifications (Sold separately please request for quote before purchase)

• Tower Top Mass: 75kg
• Tower Height: 6-12m

• Tower Type: Monopole.
