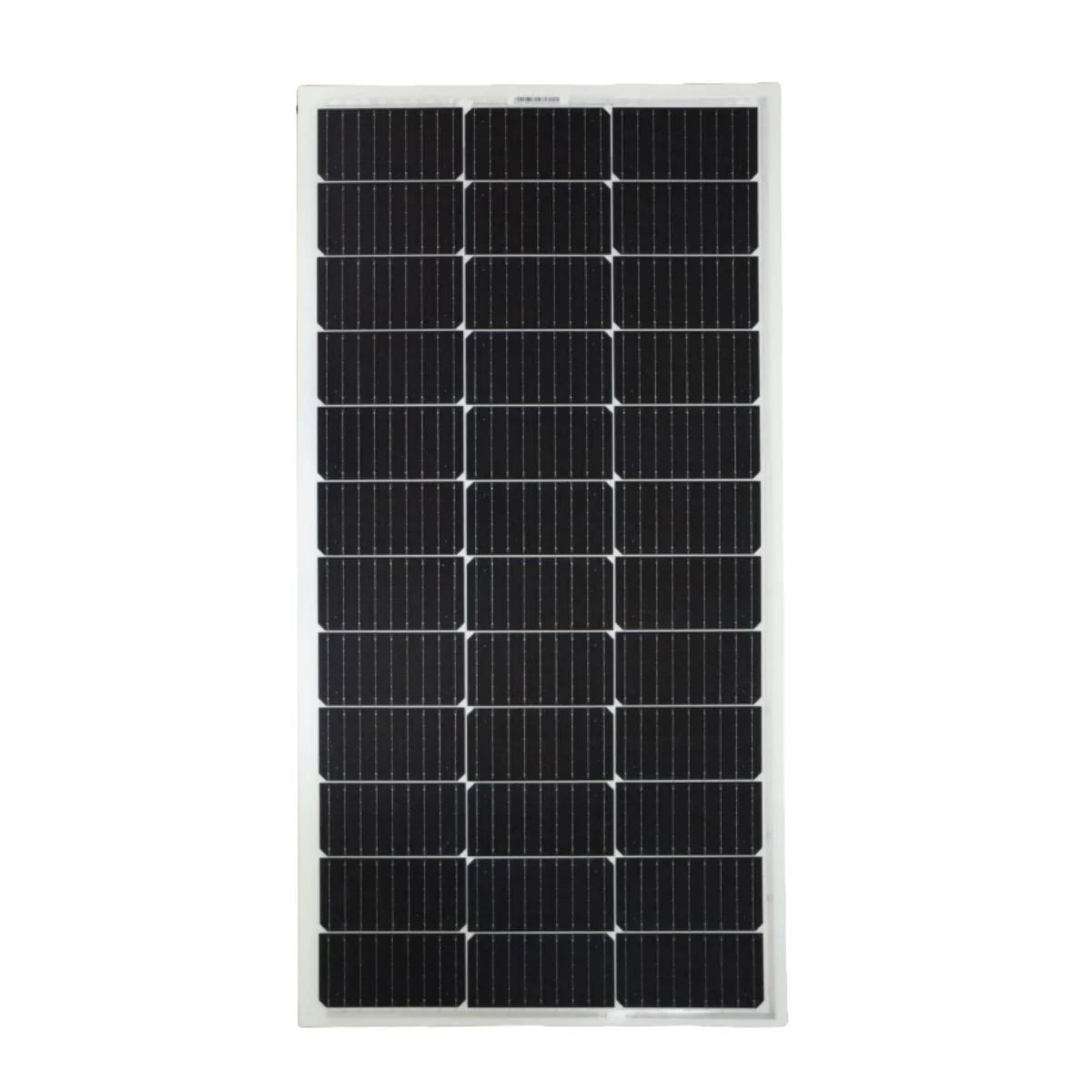

SunMan Flexible 100W Ultra-Light Mono Solar Panel with Front Connectors

R 1,500.00
R 1,500.00
Sold out
Tax included. Shipping calculated at checkout.

Availability: 450 in stock
Vendor: Magine Hardware
View full product details

Features:

  • Ultra-light: Weighs only 2.1kg, 70% lighter than traditional glass modules.
  • Aesthetic: Seamless integration with underlying installation surface.
  • Effortless Installation: Quick Bonding installation method requires no roof penetration, reduces installation time by 40%, and eliminates mounting hardware.
  • Durable: First glassless module to pass standard durability tests including PID, salt mist, and ammonia corrosion resistance.

5-Year Warranty

Electrical Specifications

Maximum Power Voltage (Vmp) 21.2 V
Maximum Power Current (Imp) 4.75 A
Open-circuit Voltage (Voc) 25.2 V
Short-circuit Current (Isc) 5.12 A
Module Efficiency 15.7%
Operating Temperature -40°C to 85°C
Maximum System Voltage 600 V DC (IEC)
Maximum Series Fuse Rating 20 A
Application Class Class A
Power Tolerance

0 / +5 W





Mechanical Characteristics

Product Model SMF100F-3X12UW
Solar Cell Mono (6 inches)
No. of Cells 36 (3 × 12)
Module Dimensions 1093 × 552 × 2 mm
Weight 2.1 kg
Backsheet White
Junction Box IP68 rated
Output Cables Photovoltaic cable 4.0 mm², (+)150 mm / (-)450 mm
Connector MC4 compatible
